Description

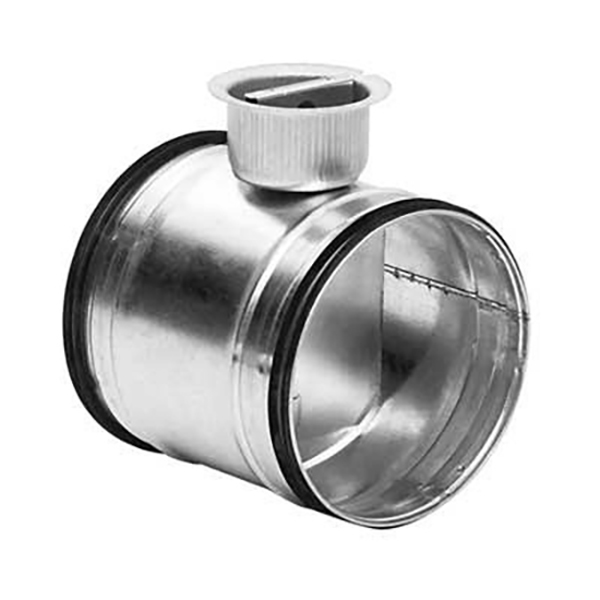

The RG95 is an airtight single blade damper regulator used to manufacture single blade damper on either rectangular or round ducting.
- Suitable for external insulated ducting
- The height of the cup allows the use of external insulation up to 50mm thick
- Ideal for dampers up to 1000mm
- Available in stainless steel
The kit includes :
- 1 cylindrical cup with graduated scale
- 1 8x8mm square front spindle welded to the handle and 2 locking screws,
- 1 8x8mm square rear spindle
- 2 omega straps and 2 screws
- 2 air tight washers with seal
- 1 locking washer clip for rear spindle
